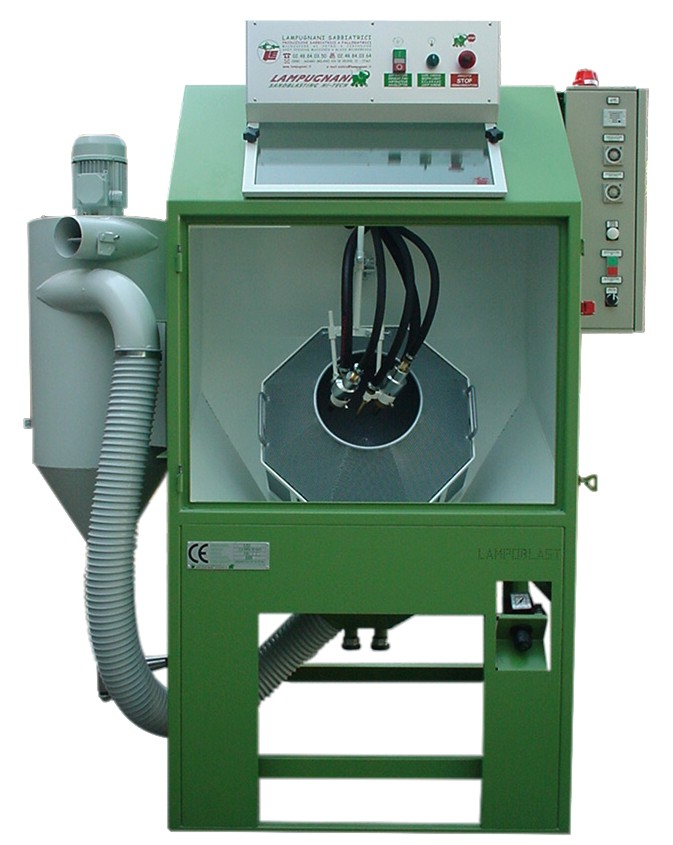

The SHOT PEENING AND SANDBLASTING MACHINES with rotary
drum are used for whole treatment of small metallic items, plastic and
thermosetting parts. The pieces to be treated are placed higgledypiggledy inside
a drum in perforated plate covered with nylon, which has particular form and
tilt. The rotation is assure by speed motovariator, adjustable 0,5 to 15
rev./min. the cycle includes: fletting and/or sandblasting/shotblasting and blow
for dusting of the treated pieces. While the parts slowly tumble, one or two
guns shoot the abrasive/microballs against pieces, which, at the end of the
cycle, are uniformly treated. Usually one can obtain very good results by
applications shorter than 6-7 min./cycle. The whole treatment cycle is
completely automatic and is controlled by proper timers, programmable by means
of suitable electrical device.
| Model |
LC/550 CR - Rotary Drum
|
LC/551 CR - Rotary Drum |
| Picture |
 |
|
| Brochure |
 |
|
|
Useful dimensions |
mm 1270 x 1100 x 1840 H |
mm 1650 x 1050 x 1840 H |
|
Drum |
Nylon Covered Ø mm 550 ( 350
) |
Nylon Covered Ø mm 550 ( 350
) |
| Maximum load |
Kg. 25 |
Kg. 25 |
|
Weight |
Kg 180 |
Kg 210 |
|
Electricfan |
0.25 HP |
0.75 HP |
|
Air consuption |
780 lt/1' - 6 atm |
780 lt/1' - 6 atm |
| Electric
connection |
220 - 380 V
TRIPHASE 50 Hz |
220 - 380 V
TRIPHASE 50 Hz |
|
Cyclone |
NO |
YES |
|
|
